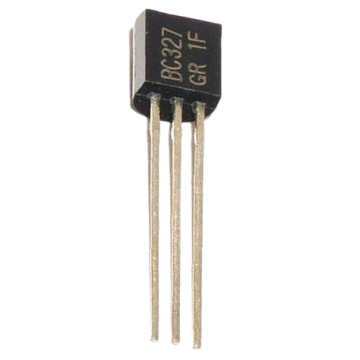

BC327 45V 0.8A PNP General Purpose Transistor

BC327 is a general purpose PNP Transistor, the base of which needs to be connected to the ground, to turn on the transistor. This transistor is available in various versions and is manufactured by many different companies, that’s why, the gain of the transistor may vary depending upon the version of the transistor. So, it’s recommended to check out the datasheet of the device before proceeding with the application and the datasheet for this specific transistor can be found on the bottom of the page.

Features:

1. Bi-Polar, High Voltage PNP Transistor
2. DC Current Gain (hFE) is 250 ~ 630
3. Continuous Collector current (IC) is -800mA
4. Base-Emitter on Voltage -1.2V
5. MAX Base- Emitter Voltage (VBE) is -5V
6. Collector-Emitter Voltage (VCE) is -45V
7. Available in To-92 Package
8. Switching and Amplifier Applications
9. Suitable for AF-Driver Stages and Low-Power Output Stage
10. Compliment to BC337/BC338
