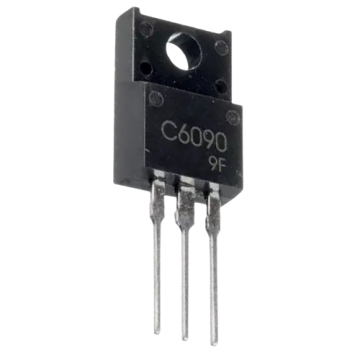

2SC6090 1500V 10A NPN Power Transistor

The 2SC6090 is a transistor that is often found in electronic devices, especially televisions in the horizontal deflection section. This transistor has several similarities that can be used as a substitute if the C6090 is difficult to find on the market.

The transistors above have the most similar characteristics to the C6090, so you can try one of them to replace the C6090 transistor. So that’s the equivalent of the C6090 transistor that you can try as a substitute for a TV that uses this type of horizontal transistor. To find other equations, you need to look at the closest data sheet. Hope it is useful.

Specifications:

1. C6090 Transistor Packaging: TO-220FI
2. Transistor Type: NPN
3. Maximum collector current (IC): 10 A
4. Maximum collector-emitter voltage (VCE): 700 V
5. Maximum collector-base (VCB) voltage: 1500 V
6. Maximum emitter-base voltage (VEBO): 5V
7. Maximum dissipated collector (PC) power: 35 W
8. Maximum Transition Frequency (fT): –
9. Maximum and minimum DC current amplifier (hFE): 15
10. Maximum operating temperature: -55 to +150 degrees Celsius

Packing List:

1Pc * 2SC6090 1500V 10A NPN Power Transistor
