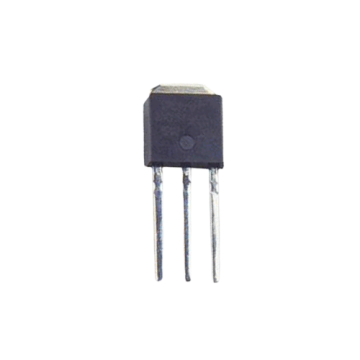

2SC4835 10V 80mA Silicon NPN Transistors

The 2SC4835, 2SC-4835, 4835 is a 10V 80mA 150mW Silicon NPN Epitaxial Planer Type For UHF Band Low-Noise Amplification Transistor. Manufactured By NEC Semiconductor.

Features:

1. Low noise figure NF.
2. High gain.
3. High transition frequency fT.
4. S-Mini type package, allowing downsizing of the equipment and automatic insertion through the tape packing and the magazine packing

Specifications:

1. Type Designator: 2SC4835
2. Material of transistor: Si
3. Polarity: NPN
4. Maximum collector power dissipation (Pc), W: 0.15
5. Maximum collector-base voltage |Ucb|, V: 15
6. Maximum collector-emitter voltage |Uce|, V: 10
7. Maximum emitter-base voltage |Ueb|, V: 2
8. Maximum collector current |Ic max|, A: 0.08
9. Maximum temperature (Tj), °C: 150
10. Transition frequency (ft), MHz: 240
11. Collector capacitance (Cc), pF: 0.7
12. Forward current transfer ratio (hFE), min: 50
13. Noise Figure, dB: –
14. Package of 2SC4835 transistor: SC-70

Packing List:

1Pc * 2SC4835 10V 80mA Silicon NPN Transistors.
