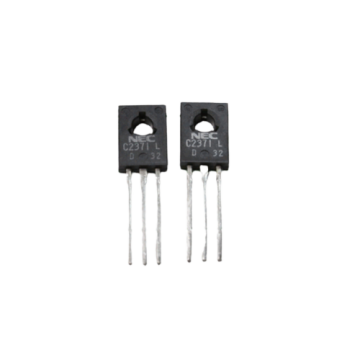

2SC2371 300V 0.1A NPN Silicon Power Transistors.

The 2SC2371 is a Silicon NPN power transistors, TO-126 package, High voltage 300V 100mA high frequency. For TV chroma output and vertical output applications.

Specifications:

1. Type Designator: 2SC2371
2. Material of transistor: Si
3. Polarity: NPN
4. Maximum collector power dissipation (Pc), W: 1
5. Maximum collector-base voltage |Ucb|, V: 300
6. Maximum collector-emitter voltage |Uce|, V: 300
7. Maximum emitter-base voltage |Ueb|, V: 7
8. Maximum collector current |Ic max|, A: 0.1A
9. Maksimalna temperature (Tj), °C: 150
10. Transition frequency (ft), MHz: 50
11. Collector capacitance (Cc), pF: 4
12. Forward current transfer ratio (hFE), min: 40
13. Noise Figure, dB: –
14. Package of 2SC2371 Transistor: TO-126

Packing List:

1Pc * 2SC2371 300V 0.1A NPN Silicon Power Transistor
