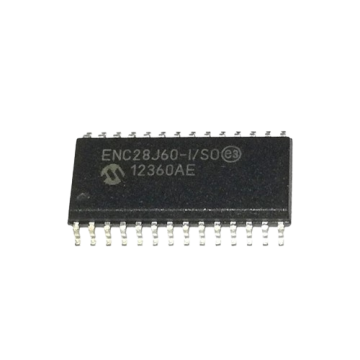

ENC28J60-I/SO Ethernet Controller IC With SPI

The ENC28J60-I/SO is a standalone Ethernet controller with an industry standard Serial Peripheral Interface (SPI™). It is designed to serve as an Ethernet network interface for any microcontroller equipped with SPI Communication. The microcontroller is implemented via SPI, with data rates up to 10Mbit/s.

Features:

1. IEEE 802.3ô Compatible Ethernet Controller
2. Fully Compatible with 10/100/1000Base-T Networks
3. Integrated MAC and 10Base-T PHY
4. Supports One 10Base-T Port with Automatic
5. Polarity Detection and Correction
6. Supports Full and Half-Duplex modes
7. Programmable Automatic Retransmit on Collision
8. Programmable Padding and CRC Generation
9. Programmable Automatic Rejection of Erroneous Packets
10. SPI Interface with Clock Speeds Up to 20 MHz

Buffer’s:

1. 8-Kbyte Transmit/Receive Packet Dual Port SRAM
2. Configurable Transmit/Receive Buffer Size
3. Hardware Managed Circular Receive FIFO
4. Byte-Wide Random and Sequential Access with Auto-Increment
5. Internal DMA for Fast Data Movement
6. Hardware Assisted Checksum Calculation for
7. Various Network Protocols

Medium Access Controller Features:

1. Supports Unicast, Multicast and Broadcast Packets
2. Programmable Receive Packet Filtering and Wake-up
3. Host on Logical AND or OR of the Following:
4. Unicast destination address
5. Multicast address
6. Broadcast address
7. Magic Packet
8. Group destination addresses as defined by
9. 64-bit Hash Table
10. Programmable Pattern Matching of up to
11. 64 bytes at user-defined offset

Physical Layer Features:

1. Loopback mode
2. Two Programmable LED Outputs for LINK, TX,
3. RX, Collision and Full/Half-Duplex Status

Operational:

1. Six Interrupt Sources and One Interrupt Output Pin
2. 25 MHz Clock Input Requirement
3. Clock Out Pin with Programmable Prescaler
4. Operating Voltage of 3.1V to 3.6V (3.3V typical)
5. 5V Tolerant Inputs
6. Temperature Range: -40°C to +85°C Industrial, 0°C to +70°C Commercial (SSOP only)
7. 28-Pin SPDIP, SSOP, SOIC, QFN Packages

Packing List:

1Pc * ENC28J60-I/SO Ethernet Controller IC With SPI
