DC12-24V 12A 2 Channel DC Motor Drive Module

DC12-24V 12A Dual Channel DC Motor Drive Module Plate L298N BTS7960 10A.Dual channel DC brush motor driver, MOSFET H bridge, each channel outputs 12A current. can dive the max 300W power DC motor.

Application areas: Automatic robot, mechatronics, Equipment manufacturing, Scientific research and production, electronic competition.

The drive module includes adaptors for motor and power supply.

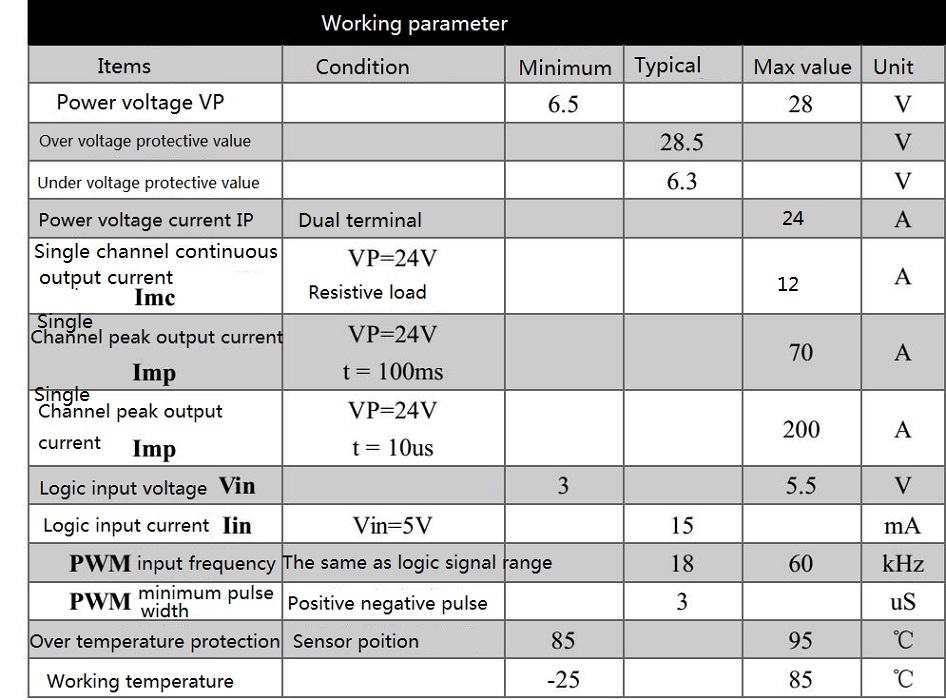

Specification:

1. – Multi protection: built-in over voltage protection, under voltage protection, over temperature protection circuit.
2. – Control signal full isolation, compatible 3-5V voltage input.
3. – Large power, can drive 2PCS 300W motor
4. – High speed PWM isolation input, the minimum pulse width:3us,isolation bandwidth:10MHz
5. – Support full duty cycle input, can off MCU, external switch control, series connecting limit switch.
6. – Driver operating voltage:6.5-29V,support 7-24V voltage grade DC brush motor
7. – Double color turn LED indicator indicating motor operation direction
8. – Size:50x50x12.5mm

Package List:

1Pc x DC12-24V 12A 2 Channel DC Motor Drive Module
